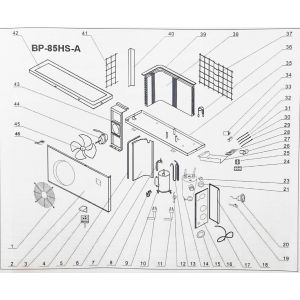

BP85HS Shott

Spare parts for heat pump BP85HS

HEAT PUMP BYPASS

By-pass kit for Heat Pumps

BP85HS Shott

Spare parts for heat pump BP85HS

Spare parts for heat pump BP85HS

As low as €6.39
Availability: In stock
SKU
RISHPCBP50HSA

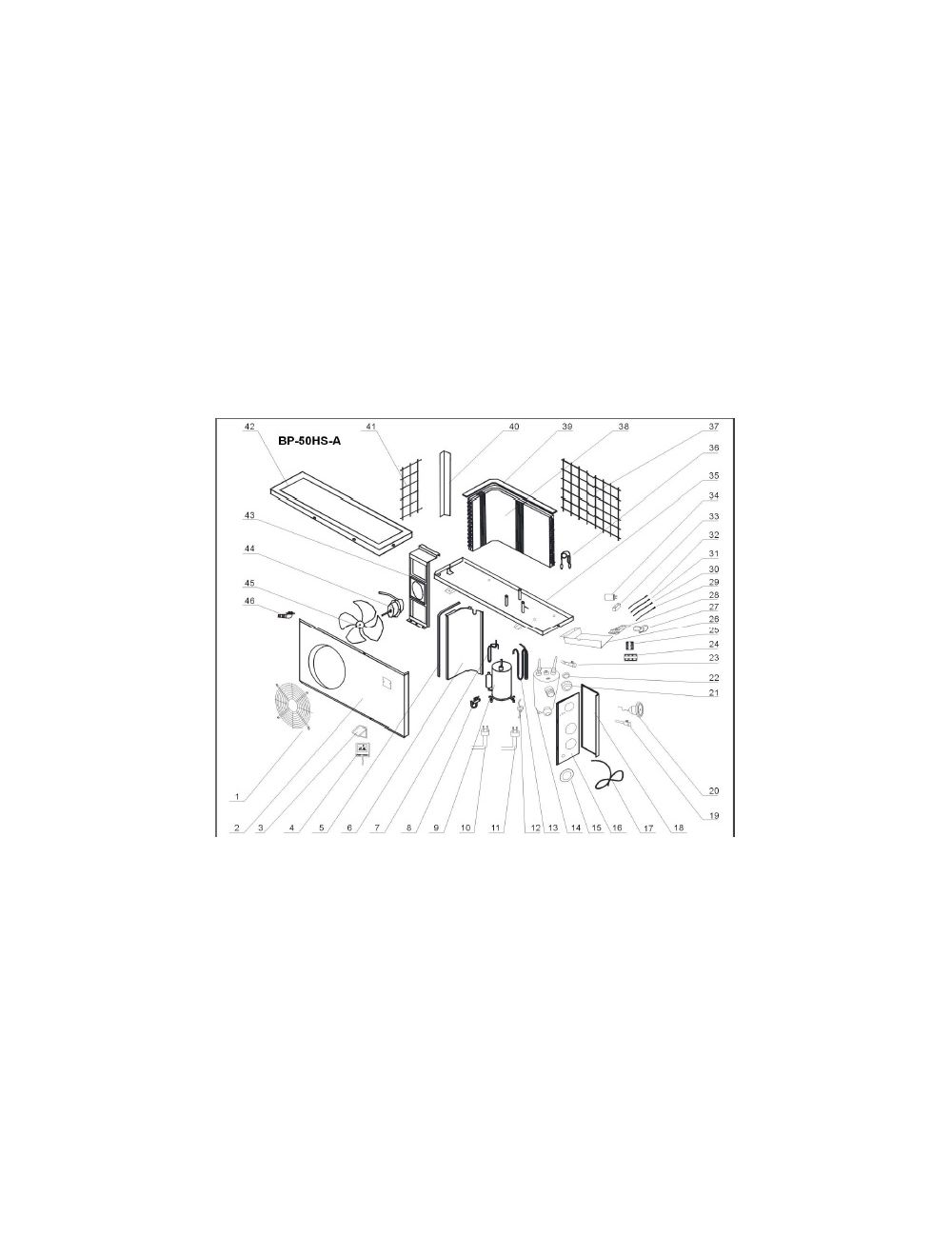

Ricambi per pompa di calore SHOTT BP50.HS - Speareparts heat Pump BP50HS

1 - XW50HSI001A - Griglia protezione ventilatore / Fan protection net
2 - XW50HSI002A - Pannello Anteriore / Front panel
3 - XW50HSI003B - Copertura display H2 / Control panel Cover
4 - XW50HSI004A - Display / Wire Controller

4a - XW50WSI004A - Display / Wire Controller

5 - XW50HSI005A - Guarnizione anti-vibrante / Verge board polyfoam
6 - XW50HSI006A - Pannello Interno / Verge board
7 - XW50HSI007A - Ciruito di Scarico / Exhaut pipe
8 - XW50HSI008A - Valvola 4 Vie / Four Way valve
9 - XW50HSI009A - Compressore BP-50HS / Compressor
10 - XW50HSI010A - Pressostato di massima / High pressure interruptor
11 - XW50HSI011A - Pressostato di minima / Low pressure interruptor

12 - XW50HSI012A - Sensore di flusso tipo F1 / Water flow swich
12 - XW50HSI012B - Sensore di flusso tipo F2 / Water flow swich

13 - XW50HSI013A - Circuito di ritiro / Gas retuning pipe
14 - XW50HSI014A - Scambiatore di calore BP-50HS tipo X1 / Titanium heat exchanger

14a - XW50HSI014A - Scambiatore di calore BP-50HS tipo X2 / Titanium heat exchanger


15 - XW50HSI015A - Guarnizione per scambiatore / Rubber water fender
16 - XW50HSI016A - Pannello laterale destro / Right side board
17 - XW50HSI017A - Cavo di Alimentazione / Power cord
18 - XW05HSI018A - Pannello posteriore / Right rear board
19 - XW50HSI019A - Valvola scarico refrigerante / Refrigerant charge valve EXT
19 - XW50HSI019B - Valvola carico refrigerante / Refrigerant charge valve INT
20 - XW50HSI020A - Manometro / Pressure Manometer
21 - XW50HSI021A - Ghiera / Fast Connection
22 - XW50HSI022A - Guarnizione cilindrica per ghiera / Gasket for fast connection
23 - XW50HSI023A - Valvola Manometro / Mouth of injectiong gas
24 - XW50HSI024A - Morsettiera Alimentazione / Terminal
25 - XW50HSI025A - Nodo per collegamenti / Public Terminal
26 - XW85HSI026A - Quadro Elettrico / Electrical Box
27 - XW85HSI027A - Trasformatore scheda madre / Trasformer Circuit Board
28 - XW50HSI028D - Scheda madre U4 / Circuit Board U4

28a - XW50HSI028A - Scheda madre / Circuit Board WS
29 - XW50HSI029A - Sonda temp. Scambiatore lam. / Coper Sensor
30 - XW50HSI030A - Sonda temp. Acqua / Water Sensor
31 - XW50HSI031A - Sonda temp. Ambiente / Ambinet Sensor
32 - XW50HSI032A - Sonda temp. Compressore / Compressor sensor
33 - XW50HSI033A - Condensatore ventilatore / Motor Capacitor
34 - XW50HSI034A - Compressore Compressore BP-50-HS / Compressor Capacitor
35 - XW50HSI035A - Pannello Inferiore / Frame
36 - XW50HSI036A - Circuito capillare BP-50HS / Capillary

36a  - XW50WSI036A - Circuito capillare BP-50HS / Capillary WS
37 - XW50HSI037A - Griglia prot. scambiatore lam. / Reat net
38 - XW50HSI038A - Scambiatore Laterale BP-50HS / Condenser
39 - XW50HSI039A - Guarnizione Anti-vibrante / Condens. top polyfoam

39 - XW50WSI039A - Guarnizione Anti-vibrante / Condens. top polyfoam
40 - XW50HSI040A - Profilo a L. / Left Carriage
41 - XW50HSI041A - Griglia protezione laterale / Left Net
42 - XW50HSI042A - Pannello Superiore / Top Cover
43 - XW50HSI043A - Supporto Ventilatore / Motor Bracket
44 - XW50HSI044A - Motore Ventilatore BP-50HS / Fan Motor
45 - XW50HSI045A - Ventola / Fan
46 - XW50HSI046A - Scarico Condensa / Drain Tube

47 - XW50HSI047A - Gommini Anti-vibranti / Silent Blocks

A richiesta

* - XW50HSI - Imballo / CardBoard Cover BP50HS

* - XW50WSI - Imballo / CardBoard Cover BP50WS
* - XW001I - Riduzione / Reduction M-M da 50/38 MM - 2 pcs
* - XW002I - By-pass kit for Heat Pumps
