The Modì Garden Grid is a modular system, made from UV-resistant recyclable HDPE, studied, PATENTED (Industrial invention and Design) and created by Claudioforesi srl. The ModìGarden Grid can be used on both new and established lawns, on sand bases, or to create gravel surfaces.
GARDEN GRID MODI’: GRIDS FOR LAWN AND GRAVEL

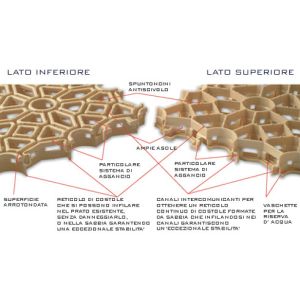

EXCEPTIONAL: thanks to its two opposite and different shaped faces, it can be used to create both new lawns and gravel surfaces, it can be laid on both established lawns, and sand bases;
ADVANTAGEOUS:very quick to lay (an unskilled worker can lay or remove about 120 m²/hour );
EFFICIENT: it has no ‘correct side’ on which it should be laid;
VERSATILE: The elements can be assembled in squares, staggered, one on top of the other – staggered or not, and the top of one against the bottom of another – slightly staggered, both horizontally and vertically;
EASY TO INSPECT: any or all of the ModìGarden Grid parts can be removed and replaced at any time, thanks to a unique attachment system;
EXTRAORDINARILYresistant and flexible, thanks to the special vertical rib shape and to the attachment system;
UNIQUE: the water conservation system (1.5 l/m²)that covers the entire surface area, can easily be doubled simply by adding a second layer of ModìGarden Grid , similarly increasing the layer of earth to a thickness of 6 cm . In this way irrigation costs are reduced, saving both time and money, and the grass is better maintained thanks to the way that ModìGarden Grid retains the soil’s nutritive substances and to the extremely reduced heat;
EFFECTIVE: Large ‘buttonholes’ (up to a maximum size of 27×15 mm) positioned on the Modì Garden Grid’s surface specifically for the purpose, help the roots to spread better both horizontally and around the Garden Grid. The transversal and longitudinal light has an aerobic function, thus meaning that the grass grows evenly. What is more, water is distributed more easily, and does not become stagnant, guaranteeing good drainage;
ORIGINAL:The Garden Grid’s patented design creates a fantastic mosaic effect;
NON-SLIPon both sides thanks to small rounded studs, which do not, however, stop you being able to walk on it;

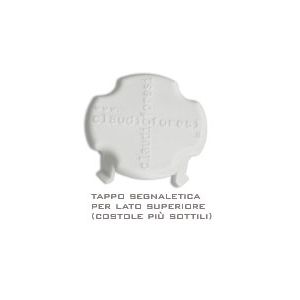

COMPLETEwith many useful accessories, such as Marker Plugs and Holding Rings, which allow you to join several pieces together to create a single element with exceptional stability and flexibility;
PRACTICAL: if you cut a Modì Garden Grid into several pieces, and it is easy to obtain the desired shape by using a saw or grinding disc, these cut pieces can then simply be attached to the standard Modì Garden Grid , thus avoiding any wastage;
OPTIMAL piling allows you to save on transportation and storage costs, as many elements can thus be stored in a limited space.
SIZE: 580x580x40 mm 3 pieces = 1 m²
WATER TANK: 1,5 lt/mq
LOAD CAPACITY: 187 Tons/m² certified . Resistance to the compression is significantly greater than that necessary to support trailers and fully-loaded trailer train or heavy fire engine. By combining the unique structure of the elements, made up of several different geometric shapes, with the ‘λ’ shaped ribs, we have obtained an exceptional load capacity and a good level of elasticity.
WORKING TEMPERATURE : from – 40 to + 100 °C approx.
PERMEABLE AND DRAINING SURFACE OVER 90%
GRASS SURFACE OVER 90%
MODÌ GARDEN GRID COLOURS: Dark green Light grey (on request) Light beige (on request)
MODÌ ACCESSORIES COLOURS: White: Marker plugs, Holding rings Yellow and Blue (on request): Marker plugs Dark green, Light grey and Light beige (on request): Holding rings for bottom side (more marked rib) Colours may vary slightly
The ModìGarden Grid is made from UV-resistant recyclable HDPE. It resists atmospheric agents, and acidic and basic chemical solutions.
The accessories are made from UV-resistant acetyl resin.
The Garden Grid and the Modì accessories have been designed to be used more than once.
